| Manufacturer Part Number: | TUNAG001 |
|---|---|
| Manufacturer: | Microchip Technology |
| Product Category: | Evaluation Boards - Sensors |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |

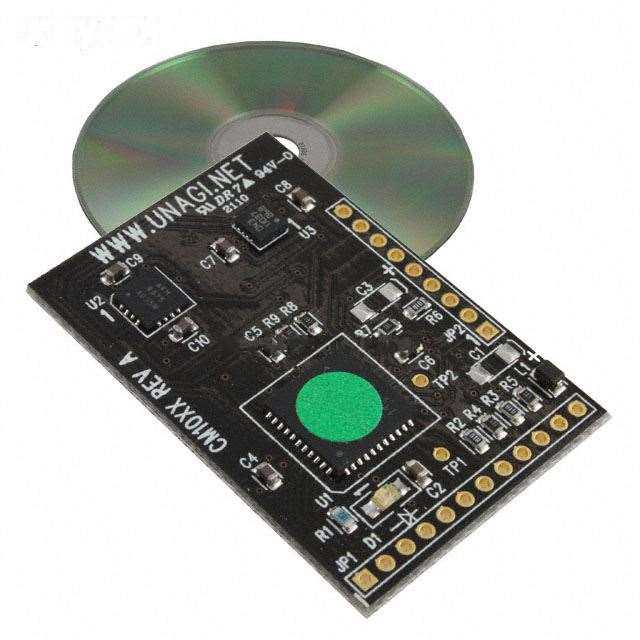

| Description: | CM1015 Unagi Magnetic, Digital Compass Sensor Evaluation Board |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | Obsolete / Discontinued |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | TUNAG001 Datasheet |
| Internal Part Number | 898-TUNAG001 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Design Resources | Development Tool Selector | |
| PCN Packaging | Label and Packing Changes 23/Sep/2015 | |
| Category | Programmers, Development Systems | |
| Family | Evaluation Boards - Sensors | |
| Manufacturer | Microchip Technology | |
| Series | Unagi | |
| Part Status | Obsolete | |
| Sensor Type | Magnetic, Digital Compass | |
| Sensing Range | - | |
| Interface | SPI | |
| Sensitivity | - | |
| Voltage - Supply | 2.7 V ~ 4 V | |
| Embedded | Yes | |
| Supplied Contents | Board | |
| Utilized IC / Part | CM1015 | |
| Standard Package | 1 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | TUNAG001 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
TUNAG001 is in stock for immediate shipping now. We are the distributor of Microchip Technology all series components. The condition of TUNAG001 is new and unused, you can buy TUNAG001 Microchip Technology with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for TUNAG001.
