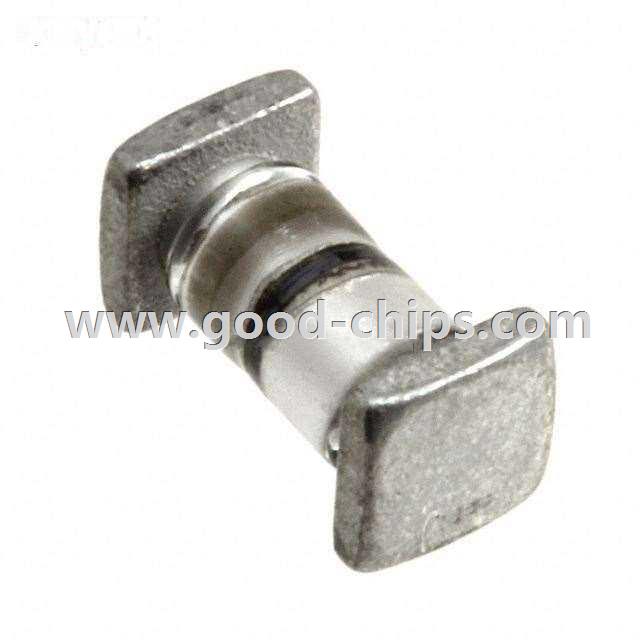

| Manufacturer Part Number: | TVS305SM |
|---|---|
| Manufacturer: | Microsemi Corporation |
| Product Category: | TVS - Diodes |
| Available Quantity: | 9035 Pieces |
| Unit Price: | Quote by Email |
| Description: | TVS DIODE 5VWM 8.7VC SMD |
| Lead Free Status / RoHS Status: | Contains lead / RoHS non-compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | TVS305SM Datasheet |
| Internal Part Number | 898-TVS305SM | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Online Catalog | TVS Series | |
| Category | Circuit Protection | |
| Family | TVS - Diodes | |
| Manufacturer | Microsemi Corporation | |
| Series | - | |
| Packaging | Bulk | |
| Part Status | Active | |
| Type | Zener | |
| Unidirectional Channels | 1 | |
| Bidirectional Channels | - | |
| Voltage - Reverse Standoff (Typ) | 5V | |
| Voltage - Breakdown (Min) | 6V | |
| Voltage - Clamping (Max) @ Ipp | 8.7V | |
| Current - Peak Pulse (10/1000µs) | 17A (8/20µs) | |
| Power - Peak Pulse | 150W | |
| Power Line Protection | No | |
| Applications | General Purpose | |
| Capacitance @ Frequency | - | |
| Operating Temperature | -65°C ~ 175°C (TJ) | |
| Mounting Type | Surface Mount | |
| Package / Case | SQ-MELF, A | |
| Supplier Device Package | A-MELF | |
| Standard Package | 1 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | TVS305SM | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
TVS305SM is in stock for immediate shipping now. We are the distributor of Microsemi Corporation all series components. The condition of TVS305SM is new and unused, you can buy TVS305SM Microsemi Corporation with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for TVS305SM.
