| Manufacturer Part Number: | USBUF02W6 |
|---|---|
| Manufacturer: | STMicroelectronics |
| Product Category: | EMI/RFI Filters (LC, RC Networks) |
| Available Quantity: | 39431 Pieces |
| Unit Price: | Quote by Email |
| Description: | RC (Pi) EMI Filter 2nd Order Low Pass 2 Channel R = 22 Ohm, C = 47pF 6-TSSOP, SC-88, SOT-363 |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | USBUF02W6 Datasheet |
| Internal Part Number | 898-USBUF02W6 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Other Related Documents | USBUF View All Specifications | |
| EDA / CAD Models | Download from Accelerated Designs | |
| Online Catalog | ASD | |
| Category | Filters | |
| Family | EMI/RFI Filters (LC, RC Networks) | |
| Manufacturer | STMicroelectronics | |
| Series | USBUF | |
| Packaging | Digi-Reel® | |
| Part Status | Active | |
| Type | Low Pass | |
| Filter Order | 2nd | |
| Technology | RC (Pi) | |
| Number of Channels | 2 | |
| Center / Cutoff Frequency | - | |
| Attenuation Value | -28dB @ 900MHz | |
| Resistance - Channel (Ohms) | 22 | |
| Current | - | |
| Values | R = 22 Ohm, C = 47pF | |
| ESD Protection | Yes | |
| Operating Temperature | -40°C ~ 125°C | |
| Applications | USB | |
| Voltage - Rated | - | |
| Mounting Type | Surface Mount | |

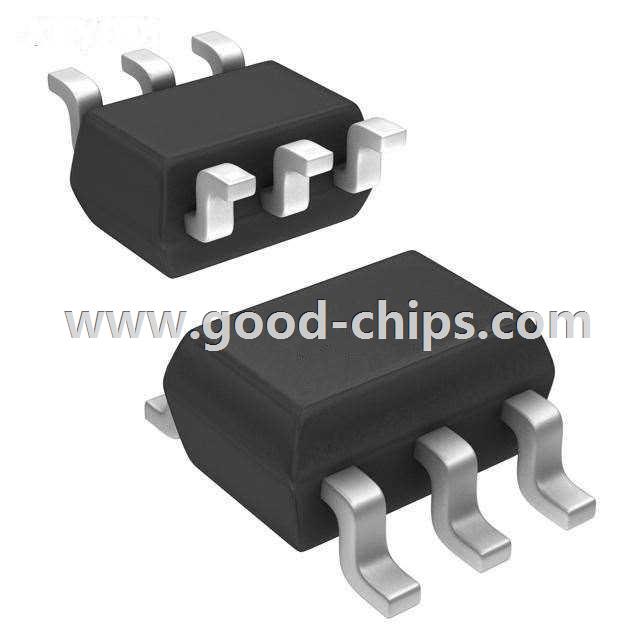

| Package / Case | 6-TSSOP, SC-88, SOT-363 | |
| Size / Dimension | 0.079" L x 0.049" W (2.00mm x 1.25mm) | |
| Height | 0.043" (1.10mm) | |
| Standard Package | 1 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | USBUF02W6 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
USBUF02W6 is in stock for immediate shipping now. We are the distributor of STMicroelectronics all series components. The condition of USBUF02W6 is new and unused, you can buy USBUF02W6 STMicroelectronics with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for USBUF02W6.
