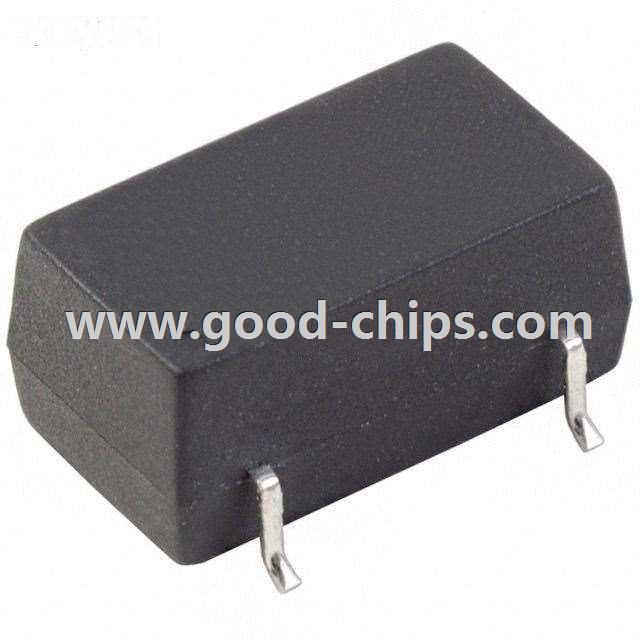

| Manufacturer Part Number: | V7802-1000-SMT-TR |
|---|---|
| Manufacturer: | CUI Inc. |
| Product Category: | DC DC Converters |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | DC/DC CONVERTER 2.5V 1A SMD |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | V7802-1000-SMT-TR Datasheet |
| Internal Part Number | 898-V7802-1000-SMT-TR | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Product Training Modules | High Efficiency Switching DC Regulator EMI Regulations and Mitigation Considerations for Switching Power Supplies Reliability Considerations for Power Supplies Power Supply Safety Standards, Agencies and Marks Thermal Management of Power Supplies | |
| RoHS Information | V780x-1000-SMT Cert of Compliance | |
| Featured Product | V78 Switching Regulators – CUI | |
| 3D Model | V7802-1000-SMT | |
| PCN Design/Specification | V78-500-SMT, V78-1000-SMT Series Design/Packaging 04/Dec/2015 | |
| Category | Power Supplies - Board Mount | |
| Family | DC DC Converters | |
| Manufacturer | CUI Inc. | |
| Series | V78-1000-SMT | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Active | |
| Type | Linear Regulator Replacement | |
| Number of Outputs | 1 | |
| Voltage - Input (Min) | 5V | |
| Voltage - Input (Max) | 18V | |
| Voltage - Output 1 | 2.5V | |
| Voltage - Output 2 | - | |
| Voltage - Output 3 | - | |
| Current - Output (Max) | 1A | |
| Power (Watts) - Manufacture Series | 3W | |
| Voltage - Isolation | - | |
| Applications | ITE (Commercial) | |
| Features | Remote On/Off, OTP, SCP | |
| Mounting Type | Surface Mount | |
| Package / Case | 10-SMD Module (6 Leads) | |
| Size / Dimension | 0.60" L x 0.33" W x 0.29" H (15.2mm x 8.5mm x 7.3mm) | |
| Operating Temperature | -40°C ~ 85°C | |
| Efficiency | 82% | |
| Power (Watts) - Max | 3W | |
| Standard Package | 500 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | V7802-1000-SMT-TR | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
V7802-1000-SMT-TR is in stock for immediate shipping now. We are the distributor of CUI Inc. all series components. The condition of V7802-1000-SMT-TR is new and unused, you can buy V7802-1000-SMT-TR CUI Inc. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for V7802-1000-SMT-TR.
