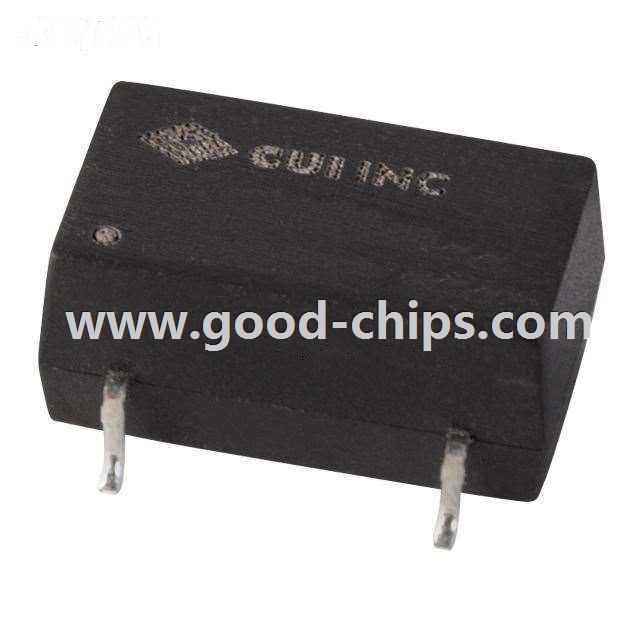

| Manufacturer Part Number: | V7812-500-SMT-TR |
|---|---|
| Manufacturer: | CUI Inc. |
| Product Category: | DC DC Converters |
| Available Quantity: | 10911 Pieces |
| Unit Price: | Quote by Email |
| Description: | CONVERT DC/DC REG 12V 500MA SMD |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | V7812-500-SMT-TR Datasheet |
| Internal Part Number | 898-V7812-500-SMT-TR | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Product Training Modules | High Efficiency Switching DC Regulator EMI Regulations and Mitigation Considerations for Switching Power Supplies Thermal Management of Power Supplies | |
| RoHS Information | V78xx-500-SMT Cert of Compliance | |
| Featured Product | V78XX Series V78 Switching Regulators – CUI | |
| 3D Model | V7812-500-SMT | |
| PCN Design/Specification | V78-500-SMT, V78-1000-SMT Series Design/Packaging 04/Dec/2015 | |
| Online Catalog | V78XX-500-SMT Series | |
| Category | Power Supplies - Board Mount | |
| Family | DC DC Converters | |
| Manufacturer | CUI Inc. | |
| Series | V78-500-SMT | |
| Packaging | Cut Tape (CT) | |
| Part Status | Active | |
| Type | Linear Regulator Replacement | |
| Number of Outputs | 1 | |
| Voltage - Input (Min) | 14V | |
| Voltage - Input (Max) | 28V | |
| Voltage - Output 1 | 12V | |
| Voltage - Output 2 | - | |
| Voltage - Output 3 | - | |
| Current - Output (Max) | 500mA | |
| Power (Watts) - Manufacture Series | 6W | |
| Voltage - Isolation | - | |
| Applications | ITE (Commercial) | |
| Features | Remote On/Off, OTP, SCP | |
| Mounting Type | Surface Mount | |
| Package / Case | 10-SMD Module (6 Leads) | |
| Size / Dimension | 0.60" L x 0.34" W x 0.28" H (15.2mm x 8.6mm x 7.1mm) | |
| Operating Temperature | -40°C ~ 85°C | |
| Efficiency | 95% | |
| Power (Watts) - Max | 6W | |
| Standard Package | 1 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | V7812-500-SMT-TR | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
V7812-500-SMT-TR is in stock for immediate shipping now. We are the distributor of CUI Inc. all series components. The condition of V7812-500-SMT-TR is new and unused, you can buy V7812-500-SMT-TR CUI Inc. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for V7812-500-SMT-TR.
