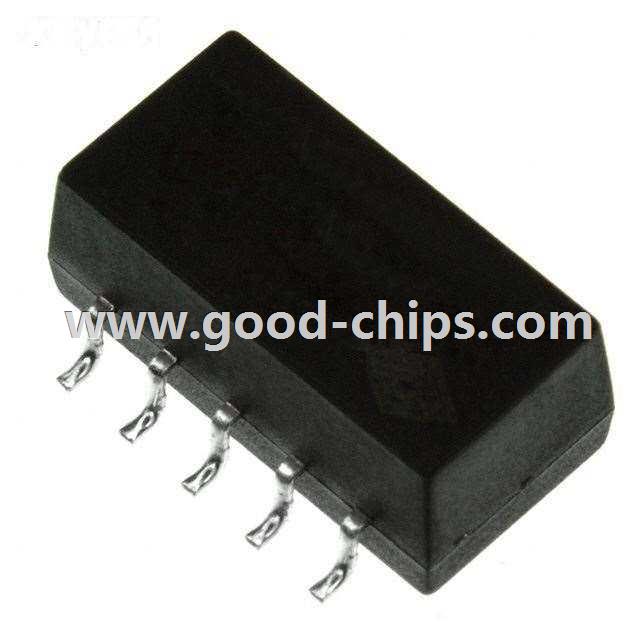

| Manufacturer Part Number: | VAT1-S5-D5-SMT-TR |
|---|---|
| Manufacturer: | CUI Inc. |
| Product Category: | DC DC Converters |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | CONVERTER DC/DC +/-5V OUT 1W |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | Obsolete / Discontinued |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | VAT1-S5-D5-SMT-TR Datasheet |
| Internal Part Number | 898-VAT1-S5-D5-SMT-TR | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| RoHS Information | VAT1-SMT Cert of Compliance | |
| PCN Obsolescence/ EOL | Multiple Series 30/Apr/2014 | |
| Category | Power Supplies - Board Mount | |
| Family | DC DC Converters | |
| Manufacturer | CUI Inc. | |
| Series | VAT1-SMT | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Obsolete | |
| Type | Isolated Module | |
| Number of Outputs | 2 | |
| Voltage - Input (Min) | 4.5V | |
| Voltage - Input (Max) | 5.5V | |
| Voltage - Output 1 | 5V | |
| Voltage - Output 2 | -5V | |
| Voltage - Output 3 | - | |
| Current - Output (Max) | 100mA, 100mA | |
| Power (Watts) - Manufacture Series | 1W | |
| Voltage - Isolation | 1kV (1000V) | |
| Applications | ITE (Commercial) | |
| Features | SCP | |
| Mounting Type | Surface Mount | |
| Package / Case | 10-SMD Module | |
| Size / Dimension | 0.60" L x 0.30" W x 0.25" H (15.2mm x 7.6mm x 6.4mm) | |
| Operating Temperature | -40°C ~ 85°C | |
| Efficiency | 72% | |
| Power (Watts) - Max | 1W | |
| Standard Package | 500 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | VAT1-S5-D5-SMT-TR | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
VAT1-S5-D5-SMT-TR is in stock for immediate shipping now. We are the distributor of CUI Inc. all series components. The condition of VAT1-S5-D5-SMT-TR is new and unused, you can buy VAT1-S5-D5-SMT-TR CUI Inc. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for VAT1-S5-D5-SMT-TR.
