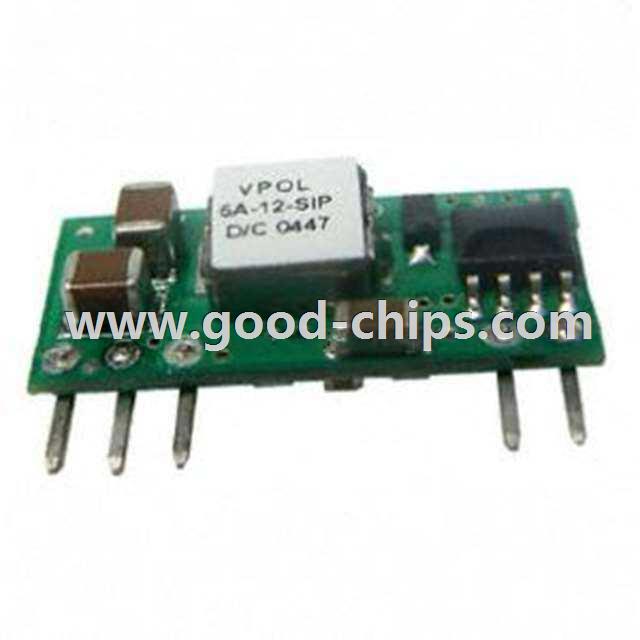

| Manufacturer Part Number: | VPOL5A-12-SIP |
|---|---|
| Manufacturer: | CUI Inc. |
| Product Category: | DC DC Converters |
| Available Quantity: | 9923 Pieces |
| Unit Price: | Quote by Email |
| Description: | CONVERTER DC/DC 5.0V OUT 5A SIP |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | VPOL5A-12-SIP Datasheet |
| Internal Part Number | 898-VPOL5A-12-SIP | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Product Training Modules | EMI Regulations and Mitigation Considerations for Switching Power Supplies Reliability Considerations for Power Supplies Power Supply Safety Standards, Agencies and Marks Thermal Management of Power Supplies | |
| RoHS Information | VPOL5A-12-SIP Cert of Compliance | |
| 3D Model | VPOL5A-12-SIP | |
| Online Catalog | VPOL5A Series | |
| Category | Power Supplies - Board Mount | |
| Family | DC DC Converters | |
| Manufacturer | CUI Inc. | |
| Series | VPOL5A | |
| Packaging | - | |
| Part Status | Active | |
| Type | Non-Isolated PoL Module | |
| Number of Outputs | 1 | |
| Voltage - Input (Min) | 8.3V | |
| Voltage - Input (Max) | 14V | |
| Voltage - Output 1 | 0.75 ~ 5 V | |
| Voltage - Output 2 | - | |
| Voltage - Output 3 | - | |
| Current - Output (Max) | 5A | |
| Power (Watts) - Manufacture Series | 25W | |
| Voltage - Isolation | - | |
| Applications | ITE (Commercial) | |
| Features | Remote On/Off, OCP, OTP, SCP, UVLO | |
| Mounting Type | Through Hole | |
| Package / Case | 5-SIP Module | |
| Size / Dimension | 0.90" L x 0.22" W x 0.40" H (22.9mm x 5.6mm x 10.2mm) | |
| Operating Temperature | -40°C ~ 85°C | |
| Efficiency | 92% | |
| Power (Watts) - Max | 25W | |
| Standard Package | 250 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | VPOL5A-12-SIP | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
VPOL5A-12-SIP is in stock for immediate shipping now. We are the distributor of CUI Inc. all series components. The condition of VPOL5A-12-SIP is new and unused, you can buy VPOL5A-12-SIP CUI Inc. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for VPOL5A-12-SIP.
