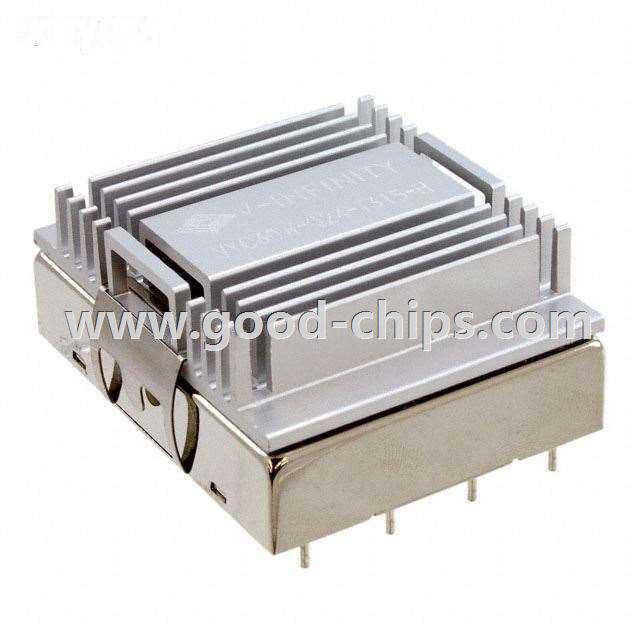

| Manufacturer Part Number: | VYC30W-Q24-T315-H |
|---|---|
| Manufacturer: | CUI Inc. |
| Product Category: | DC DC Converters |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | DC/DC CONVERT 3.3, +/-15V 30W TH |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | Obsolete / Discontinued |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | VYC30W-Q24-T315-H Datasheet |
| Internal Part Number | 898-VYC30W-Q24-T315-H | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| RoHS Information | VYC30W Series Cert of Compliance | |
| PCN Obsolescence/ EOL | Multiple Devices 31/May/2013 | |
| Category | Power Supplies - Board Mount | |
| Family | DC DC Converters | |
| Manufacturer | CUI Inc. | |
| Series | VYC30W | |
| Packaging | Bulk | |
| Part Status | Obsolete | |
| Type | Isolated Module | |
| Number of Outputs | 3 | |
| Voltage - Input (Min) | 9V | |
| Voltage - Input (Max) | 36V | |
| Voltage - Output 1 | 3.3V | |
| Voltage - Output 2 | 15V | |
| Voltage - Output 3 | -15V | |
| Current - Output (Max) | 4A, 500mA, 500mA | |
| Power (Watts) - Manufacture Series | 30W | |
| Voltage - Isolation | 1.5kV (1500V) | |
| Applications | ITE (Commercial) | |
| Features | Remote On/Off, UVLO | |
| Mounting Type | Through Hole | |
| Package / Case | 7-DIP Module | |
| Size / Dimension | 2.00" L x 1.82" W x 0.91" H (50.8mm x 46.2mm x 23.0mm) | |
| Operating Temperature | -40°C ~ 85°C | |
| Efficiency | 85% | |
| Power (Watts) - Max | 28W | |
| Standard Package | 20 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | VYC30W-Q24-T315-H | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
VYC30W-Q24-T315-H is in stock for immediate shipping now. We are the distributor of CUI Inc. all series components. The condition of VYC30W-Q24-T315-H is new and unused, you can buy VYC30W-Q24-T315-H CUI Inc. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for VYC30W-Q24-T315-H.
