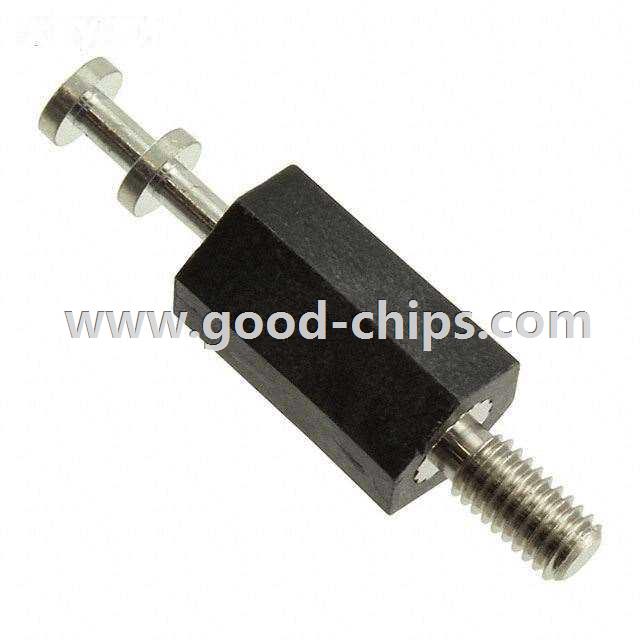

| Manufacturer Part Number: | W2332-00 |
|---|---|
| Manufacturer: | Harwin Inc. |
| Product Category: | Terminals - Turret Connectors |
| Available Quantity: | 9225 Pieces |
| Unit Price: | Quote by Email |
| Description: | Terminal Turret Connector Single End 0.744" ~ 0.764" (18.90mm ~ 19.40mm) Tin |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | W2332-00 Datasheet |
| Internal Part Number | 898-W2332-00 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Online Catalog | Turret Terminals - Harwin Inc | |
| Category | Connectors, Interconnects | |
| Family | Terminals - Turret Connectors | |
| Manufacturer | Harwin Inc. | |
| Series | - | |
| Part Status | Active | |
| Terminal Type | Single End | |
| Number of Turrets | Double | |
| Length - Above Board | 0.744" ~ 0.764" (18.90mm ~ 19.40mm) | |
| Length - Below Flange | 0.244" ~ 0.252" (6.20mm ~ 6.40mm) | |
| Length - Overall | 0.988" ~ 1.015" (25.10mm ~ 25.78mm) | |
| Mounting Type | Panel Mount | |
| Termination | Threaded | |
| Flange Diameter | - | |
| Diameter - Turret Head | 0.136" ~ 0.140" (3.45mm ~ 3.56mm) | |
| Staking Side OD | - | |
| Staking Side ID | - | |
| Mounting Hole Diameter | - | |
| Board Thickness | - | |
| Contact Material | Brass | |
| Contact Finish | Tin | |
| Contact Finish Thickness | 300µin (7.62µm) | |
| Insulation | Insulated | |
| Material - Insulation | Polyamide (PA46), Nylon 4/6 | |
| Insulation Color | Black | |
| Standard Package | 1 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | W2332-00 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
W2332-00 is in stock for immediate shipping now. We are the distributor of Harwin Inc. all series components. The condition of W2332-00 is new and unused, you can buy W2332-00 Harwin Inc. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for W2332-00.
