| Manufacturer Part Number: | W3011 |
|---|---|
| Manufacturer: | Pulse Electronics Corporation |
| Product Category: | RF Antennas |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |

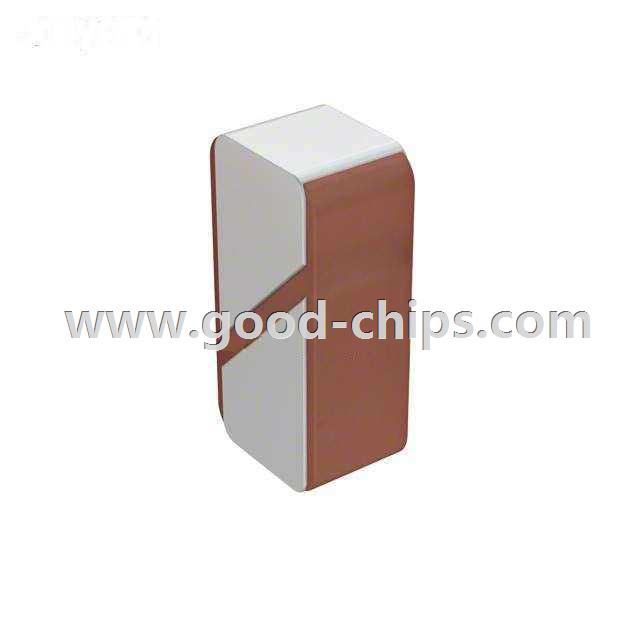

| Description: | 1.575GHz GPS Chip RF Antenna 3.4dBi Solder Surface Mount |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | W3011 Datasheet |
| Internal Part Number | 898-W3011 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Product Training Modules | Surface Mount Antennas | |
| Design Resources | IoT Product Selector | |
| Online Catalog | Pulse - Embedded | |
| Category | RF/IF and RFID | |
| Family | RF Antennas | |
| Manufacturer | Pulse Electronics Corporation | |
| Series | - | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Active | |
| Frequency Group | UHF (1 GHz ~ 2 GHz) | |
| Frequency (Center/Band) | 1.575GHz | |
| Frequency Range | - | |
| Antenna Type | Chip | |
| Number of Bands | 1 | |
| VSWR | - | |
| Return Loss | -12dB | |
| Gain | 3.4dBi | |
| Power - Max | - | |
| Features | - | |
| Termination | Solder | |
| Ingress Protection | - | |
| Mounting Type | Surface Mount | |
| Height (Max) | 0.043" (1.10mm) | |
| Applications | GPS | |
| Standard Package | 3,000 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | W3011 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
W3011 is in stock for immediate shipping now. We are the distributor of Pulse Electronics Corporation all series components. The condition of W3011 is new and unused, you can buy W3011 Pulse Electronics Corporation with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for W3011.
