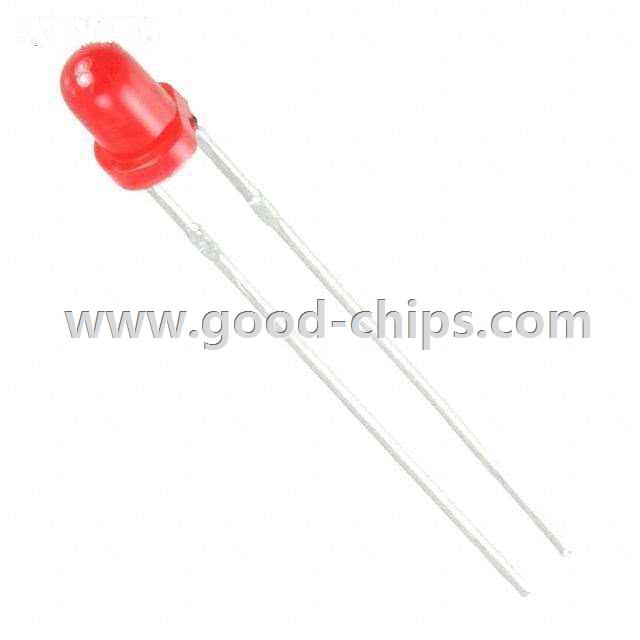

| Manufacturer Part Number: | WP3A10HD |
|---|---|
| Manufacturer: | Kingbright |
| Product Category: | LED Indication - Discrete |
| Available Quantity: | 12542 Pieces |
| Unit Price: | Quote by Email |
| Description: | Red 635nm LED Indication - Discrete 2.25V Radial |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | WP3A10HD Datasheet |
| Internal Part Number | 898-WP3A10HD | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| 3D Model | WP3A10x.igs WP3A10x.pro WP3A10x.sldprt WP3A10x.stp | |
| Online Catalog | 3mm, T-1 Round with Domed Top LED Lamps | |
| Category | Optoelectronics | |
| Family | LED Indication - Discrete | |
| Manufacturer | Kingbright | |
| Series | - | |
| Packaging | Bulk | |
| Part Status | Active | |
| Color | Red | |
| Lens Color | Red | |
| Lens Transparency | Diffused | |
| Millicandela Rating | 1.8mcd | |
| Lens Style/Size | Round with Domed Top, 3mm (T-1), 3.00mm | |
| Voltage - Forward (Vf) (Typ) | 2.25V | |
| Current - Test | 20mA | |
| Viewing Angle | 60° | |
| Mounting Type | Through Hole | |
| Wavelength - Dominant | 635nm | |
| Wavelength - Peak | 700nm | |
| Features | - | |
| Package / Case | Radial | |
| Supplier Device Package | T-1 | |
| Size / Dimension | - | |
| Height (Max) | 5.00mm | |
| Standard Package | 1,000 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | WP3A10HD | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
WP3A10HD is in stock for immediate shipping now. We are the distributor of Kingbright all series components. The condition of WP3A10HD is new and unused, you can buy WP3A10HD Kingbright with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for WP3A10HD.
