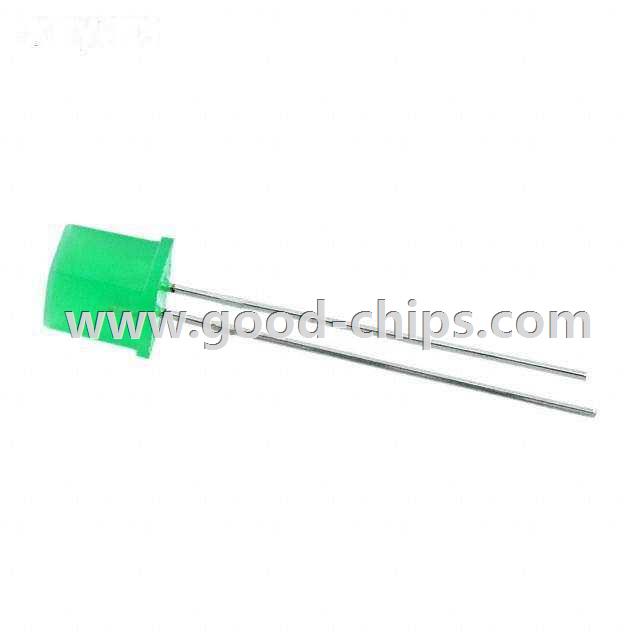

| Manufacturer Part Number: | WP503GDT |
|---|---|
| Manufacturer: | Kingbright |
| Product Category: | LED Indication - Discrete |
| Available Quantity: | 10764 Pieces |
| Unit Price: | Quote by Email |
| Description: | Green 568nm LED Indication - Discrete 2.2V Radial |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | WP503GDT Datasheet |
| Internal Part Number | 898-WP503GDT | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| 3D Model | WP503x.igs WP503x.pro WP503x.sldprt WP503x.stp | |
| Online Catalog | 5mm x 5mm Rectangle with Flat Top LEDs | |
| Category | Optoelectronics | |
| Family | LED Indication - Discrete | |
| Manufacturer | Kingbright | |
| Series | - | |
| Packaging | Bulk | |
| Part Status | Active | |
| Color | Green | |
| Lens Color | Green | |
| Lens Transparency | Diffused | |
| Millicandela Rating | 3mcd | |
| Lens Style/Size | Square with Flat Top, 5.00mm | |
| Voltage - Forward (Vf) (Typ) | 2.2V | |
| Current - Test | 20mA | |
| Viewing Angle | 110° | |
| Mounting Type | Through Hole | |
| Wavelength - Dominant | 568nm | |
| Wavelength - Peak | 565nm | |
| Features | - | |
| Package / Case | Radial | |
| Supplier Device Package | Square Type LED | |
| Size / Dimension | - | |
| Height (Max) | 7.20mm | |
| Standard Package | 1,000 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | WP503GDT | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
WP503GDT is in stock for immediate shipping now. We are the distributor of Kingbright all series components. The condition of WP503GDT is new and unused, you can buy WP503GDT Kingbright with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for WP503GDT.
