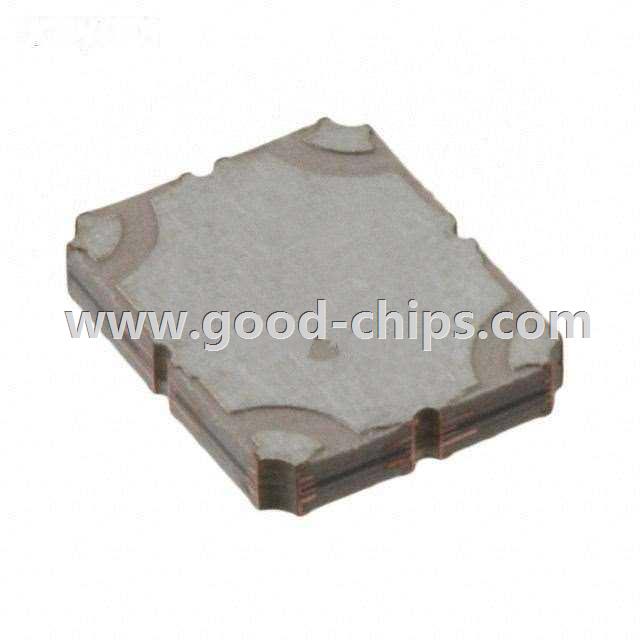

| Manufacturer Part Number: | X3C09P1-03S |
|---|---|
| Manufacturer: | Anaren |
| Product Category: | RF Directional Coupler |
| Available Quantity: | 10584 Pieces |
| Unit Price: | Quote by Email |
| Description: | RF Directional Coupler AMPS, CDMA, WCDMA 800MHz ~ 1GHz 3dB 90W 2520 (6450 Metric) |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | X3C09P1-03S Datasheet |
| Internal Part Number | 898-X3C09P1-03S | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| RoHS Information | X3C09P1-03S Material Declaration | |
| Design Resources | IoT Product Selector | |
| Online Catalog | X3C09P1-xxS | |
| Category | RF/IF and RFID | |
| Family | RF Directional Coupler | |
| Manufacturer | Anaren | |
| Series | Xinger III® | |
| Packaging | Digi-Reel® | |
| Part Status | Active | |
| Coupler Type | Standard | |
| Frequency | 800MHz ~ 1GHz | |
| Coupling Factor | 3dB | |
| Applications | AMPS, CDMA, WCDMA | |
| Insertion Loss | 0.22dB | |
| Power - Max | 90W | |
| Isolation | 23dB | |
| Return Loss | 24.9dB | |
| Package / Case | 2520 (6450 Metric) | |
| Supplier Device Package | 4-SMD | |
| Standard Package | 1 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | X3C09P1-03S | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
X3C09P1-03S is in stock for immediate shipping now. We are the distributor of Anaren all series components. The condition of X3C09P1-03S is new and unused, you can buy X3C09P1-03S Anaren with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for X3C09P1-03S.
