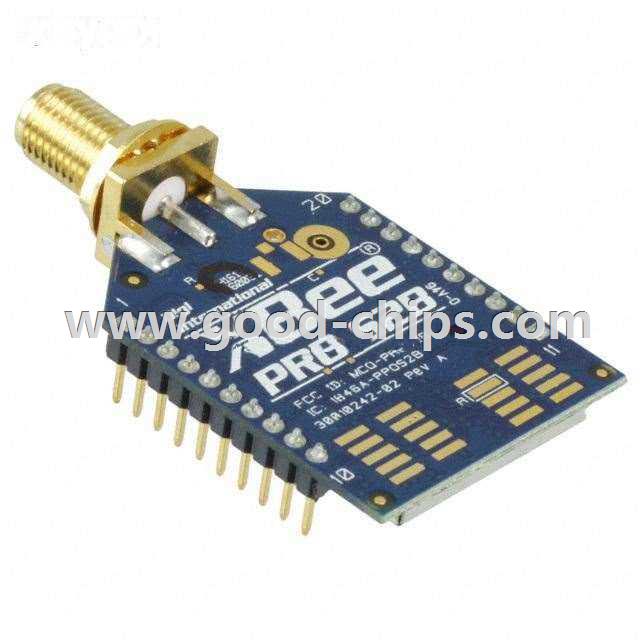

XBP24BZ7SITA003

XBP24BZ7SITA003
Manufacturer Part Number:XBP24BZ7SITA003
Manufacturer:
Product Category:RF Transceiver Modules
Available Quantity:9010 Pieces
Unit Price:Quote by Email
Description:RF TXRX MODULE 802.15.4 RP-SMA
Lead Free Status / RoHS Status:Lead free / RoHS Compliant
Moisture Sensitivity Level (MSL):1 (Unlimited)
Production Status (Lifecycle):Obsolete / Discontinued
Delivery Time:1-2 Days
Date Code (D/C):New
Datasheet Download: XBP24BZ7SITA003 Datasheet
XBP24BZ7SITA003´s Parameters
Internal Part Number898-XBP24BZ7SITA003
Manufacturer Lead time6-8 weeks
ConditionNew & Unused, Original Sealed
Other Related DocumentsXBee™ Family Chart
Product Training ModulesHow to Perform a Range Test Between Two XBee Modules
Chat Session via XBee
Antenna Design and Integration Fundamentals
Video FileXBees Soar into Space on NASA Rocket
Which Mesh Networking Technology is Right for You?
RoHS InformationRoHS Declaration of Compliance
Design ResourcesDevelopment Tool Selector
IoT Product Selector
Featured ProductDigi International - The World of Xbee
PCN Obsolescence/ EOLXbee/PRO ZigBee S2/S2B EOL 19/Nov/2015
PCN Design/SpecificationRelease of XCTU 6.2 16/Jun/2015
XCTU 10/Jun/2016
CategoryRF/IF and RFID
FamilyRF Transceiver Modules
ManufacturerDigi International
SeriesXBee-Pro® ZB S2B
PackagingBulk
Part StatusObsolete
RF Family/Standard802.15.4
ProtocolZigbee®
Modulation-
Frequency2.4GHz
Data Rate250kbps
Power - Output18dBm
Sensitivity-102dBm
Serial InterfacesSPI, UART
Antenna TypeNot Included, RP-SMA
Memory Size32kB Flash, 2kB RAM
Voltage - Supply2.7 V ~ 3.6 V
Current - Receiving47mA ~ 62mA
Current - Transmitting205mA ~ 220mA
Mounting TypeThrough Hole
Operating Temperature-40°C ~ 85°C
Package / CaseModule
Standard Package 1
Weight0.001 KG
ApplicationEmail for details
Replacement PartXBP24BZ7SITA003
Country of OriginUSA / JAPAN / Philippines / Malaysia
MOQ1 Piece
Picture / Image / PhotoSend via email

XBP24BZ7SITA003 is in stock for immediate shipping now. We are the distributor of Digi International all series components. The condition of XBP24BZ7SITA003 is new and unused, you can buy XBP24BZ7SITA003 Digi International with us at a very low price and quick delivery.

Please kindly send us an email if you have any demands for XBP24BZ7SITA003.
