Manufacturer Part Number: | XW4L-02A1-V1 |
---|---|
Manufacturer: | Omron Electronics Inc-EMC Div |
Product Category: | Terminal Blocks - Wire to Board |
Available Quantity: | 9010 Pieces |
Unit Price: | Quote by Email |

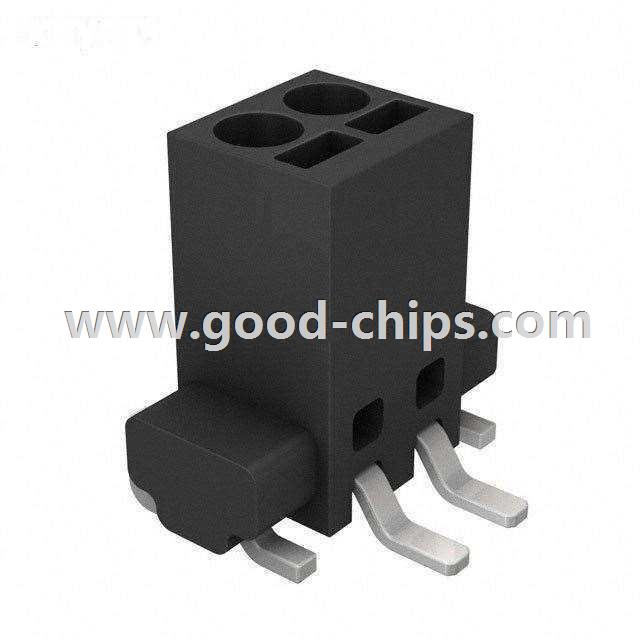

Description: | 2 Position Wire to Board Terminal Block Vertical with Board 0.100" (2.54mm) Surface Mount |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | XW4L-02A1-V1 Datasheet |
Internal Part Number | 898-XW4L-02A1-V1 | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Category | Connectors, Interconnects | |
Family | Terminal Blocks - Wire to Board | |
Manufacturer | Omron Electronics Inc-EMC Div | |
Series | XW4 | |
Packaging | Bulk | |
Part Status | Active | |
Number of Levels | 1 | |
Positions Per Level | 2 | |
Pitch | 0.100" (2.54mm) | |
Mating Orientation | Vertical with Board | |
Current | 6A | |
Voltage | 160V | |
Wire Gauge | 20-26 AWG | |
Mounting Type | Surface Mount | |
Wire Termination | Screwless - Leg Spring, Push-In Spring | |
Features | Board Guide | |
Color | Black | |
Operating Temperature | -45°C ~ 125°C | |
Housing Material | Liquid Crystal Polymer (LCP) | |
Contact Material - Plating | Copper Alloy - Tin Plated | |
Clamp Material - Plating | - | |
Screw Material - Plating | - | |
Torque - Screw | - | |
Screw Thread | - | |
Standard Package | 250 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | XW4L-02A1-V1 | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
XW4L-02A1-V1 is in stock for immediate shipping now. We are the distributor of Omron Electronics Inc-EMC Div all series components. The condition of XW4L-02A1-V1 is new and unused, you can buy XW4L-02A1-V1 Omron Electronics Inc-EMC Div with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for XW4L-02A1-V1.
