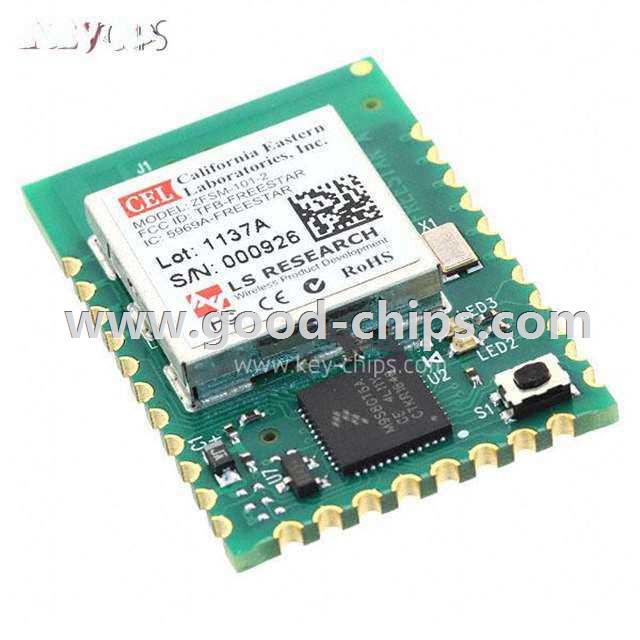

| Manufacturer Part Number: | ZFSM-101-2-B |
|---|---|
| Manufacturer: | CEL |
| Product Category: | RF Transceiver Modules |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | RF TXRX MOD 802.15.4 TRACE ANT |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 3 (168 Hours) |
| Production Status (Lifecycle): | Obsolete / Discontinued |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | ZFSM-101-2-B Datasheet |
| Internal Part Number | 898-ZFSM-101-2-B | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Design Resources | Development Tool Selector IoT Product Selector | |
| PCN Obsolescence/ EOL | Multiple Devices 08/Oct/2012 | |
| Category | RF/IF and RFID | |
| Family | RF Transceiver Modules | |
| Manufacturer | CEL | |
| Series | FreeStar | |
| Packaging | Bulk | |
| Part Status | Obsolete | |
| RF Family/Standard | 802.15.4 | |
| Protocol | Zigbee® | |
| Modulation | - | |
| Frequency | 2.4GHz | |
| Data Rate | 250kbps | |
| Power - Output | 20dBm | |
| Sensitivity | -91dBm | |
| Serial Interfaces | UART | |
| Antenna Type | Integrated, Trace | |
| Memory Size | - | |
| Voltage - Supply | 2.8 V ~ 3.6 V | |
| Current - Receiving | 50mA | |
| Current - Transmitting | 165mA | |
| Mounting Type | Surface Mount | |
| Operating Temperature | -40°C ~ 85°C | |
| Package / Case | Module | |
| Standard Package | 50 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | ZFSM-101-2-B | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
ZFSM-101-2-B is in stock for immediate shipping now. We are the distributor of CEL all series components. The condition of ZFSM-101-2-B is new and unused, you can buy ZFSM-101-2-B CEL with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for ZFSM-101-2-B.
