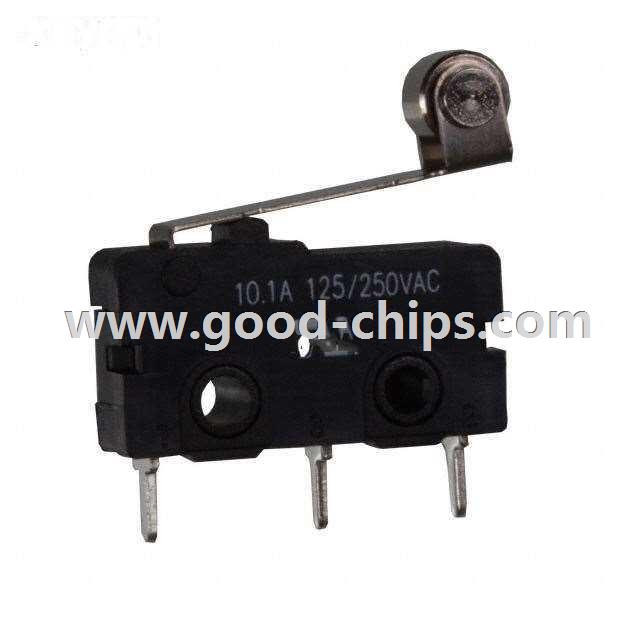

| Manufacturer Part Number: | ZM90G20F01 |
|---|---|
| Manufacturer: | Honeywell Sensing and Productivity Solutions |
| Product Category: | Snap Action, Limit Switches |
| Available Quantity: | 10402 Pieces |
| Unit Price: | Quote by Email |
| Description: | SWITCH SNAP ACTION SPDT 10A 125V |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | ZM90G20F01 Datasheet |
| Internal Part Number | 898-ZM90G20F01 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Product Training Modules | Electromechanical Switch Technology | |
| Featured Product | MICRO SWITCH ZM Series | |
| Online Catalog | MICRO SWITCH™ ZM Series | |
| Category | Switches | |
| Family | Snap Action, Limit Switches | |
| Manufacturer | Honeywell Sensing and Productivity Solutions | |
| Series | ZM | |
| Packaging | Bulk | |
| Part Status | Active | |
| Circuit | SPDT | |
| Switch Function | On-Mom | |
| Current Rating | 10A (AC) | |
| Voltage Rating - AC | 125V | |
| Voltage Rating - DC | - | |
| Actuator Type | Lever, Roller | |
| Mounting Type | Through Hole | |
| Termination Style | PC Pin | |
| Ingress Protection | - | |
| Features | - | |
| Operating Force, Torque | 59gf | |
| Release Force | 15gf | |
| Pretravel | 0.150" (3.8mm) | |
| Differential Travel | 0.030" (0.76mm) | |
| Overtravel | 0.030" (0.76mm) | |
| Operating Position | 0.689" (17.5mm) | |
| Mechanical Life | 10,000,000 Cycles | |
| Electrical Life | 6,000 Cycles | |
| Operating Temperature | -40°C ~ 120°C | |
| Standard Package | 1,200 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | ZM90G20F01 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
ZM90G20F01 is in stock for immediate shipping now. We are the distributor of Honeywell Sensing and Productivity Solutions all series components. The condition of ZM90G20F01 is new and unused, you can buy ZM90G20F01 Honeywell Sensing and Productivity Solutions with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for ZM90G20F01.
