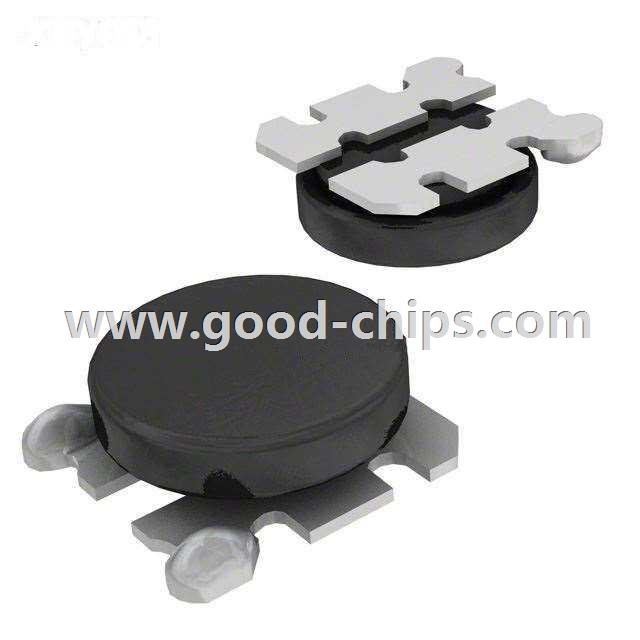

| Manufacturer Part Number: | CDH2D09SNP-2R4MC |
|---|---|
| Manufacturer: | Sumida America Components Inc. |
| Product Category: | Fixed Inductors |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | 2.4µH Unshielded Inductor 780mA 195 mOhm Nonstandard |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | Obsolete / Discontinued |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | CDH2D09SNP-2R4MC Datasheet |
| Internal Part Number | 898-CDH2D09SNP-2R4MC | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Product Training Modules | Power Inductor Basics | |
| PCN Obsolescence/ EOL | EOL Notice 22-Jun-2014 | |
| Category | Inductors, Coils, Chokes | |
| Family | Fixed Inductors | |
| Manufacturer | Sumida America Components Inc. | |
| Series | CDH2D09S | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Obsolete | |
| Type | - | |
| Material - Core | Ferrite | |
| Inductance | 2.4µH | |
| Tolerance | ±20% | |
| Current Rating | 780mA | |
| Current - Saturation | 560mA | |
| Shielding | Unshielded | |
| DC Resistance (DCR) | 195 mOhm | |
| Q @ Freq | - | |
| Frequency - Self Resonant | - | |
| Ratings | - | |
| Operating Temperature | -40°C ~ 105°C | |
| Frequency - Test | 100kHz | |
| Mounting Type | Surface Mount | |
| Package / Case | Nonstandard | |
| Size / Dimension | 0.094" L x 0.094" W (2.40mm x 2.40mm) | |
| Height - Seated (Max) | 0.039" (1.00mm) | |
| Standard Package | 1,500 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | CDH2D09SNP-2R4MC | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
CDH2D09SNP-2R4MC is in stock for immediate shipping now. We are the distributor of Sumida America Components Inc. all series components. The condition of CDH2D09SNP-2R4MC is new and unused, you can buy CDH2D09SNP-2R4MC Sumida America Components Inc. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for CDH2D09SNP-2R4MC.
